Configure SIP account
Catatan
Configuring SIP accounts in Jami is optional.
Direct calls inside a LAN
Jami can make "direct" calls inside local area network (LAN) and wide area network (WAN) intranets from a Jami client to SIP-enabled devices.
For example, if a device at the 192.168.1.11 address has a Jami client installed and a SIP loudspeaker is located at the 192.168.1.68 address, write the SIP URI, such as test@192.168.0.10, in the contact search text box and then click the Dial (handset) button.
Private branch exchanges (PBX)
Jami is compatible with private branch exchanges (PBX), such as Asterisk, using a SIP account.
Internet-based telephone services
SIP service providers, providing Voice over Internet Protocol (VoIP) phone services, can be set up to work with Jami using SIP accounts.
SIP service providers can enable Jami to make and receive phone calls and send and receive SMS/MMS messages.
Additionally, this Jami feature provides a replacement for the discontinued Skype to Phone service.
SIP channels
Catatan
"SIP channels" are also known as "sub-accounts" and "SIP extensions."
If required, SIP channels allow the registration of more than one device to make or receive calls simultaneously. It can also be used as an internal extension for the office and the home.
To ensure that all devices using the same SIP account ring when there are incoming calls, ensure that each device uses a different SIP channel.
For each device using Jami with a SIP account, a new channel must be created; otherwise, the different devices will "compete" to "answer" incoming calls. The number of SIP channels required is the same as the number of configured desktop and mobile devices that use the same SIP account.

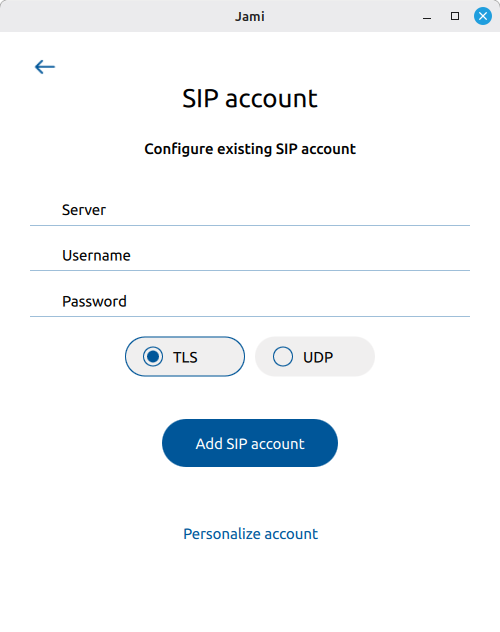

Jami configuration
Enter the information to configure the new SIP accounts in Jami. Ensure that different SIP channels are configured for each device.
Ring groups
Ring groups are used to ring specific groups of users in a preconfigured pattern. Calls routed to a ring group will follow the configured ring pattern for that group.
